Console Royalty. Pink-Knob Polish!
Control Real Gear. Reserve or Use On-Demand.

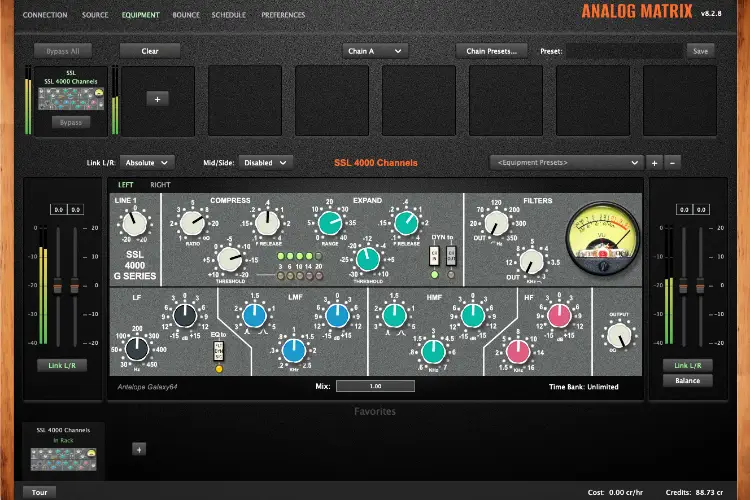

Control real analog gear straight from your DAW with the Analog Matrix. The Analog Matrix is not an emulation! It acts as a portal, connecting your digital audio workstation to actual physical gear in real time.
Reserve a session using the calendar below, or jump straight into the Analog Matrix plugin and use equipment on demand as it is available. Note: on-demand access requires credits or an active subscription.
Analog Matrix
Robotic Control
Overview

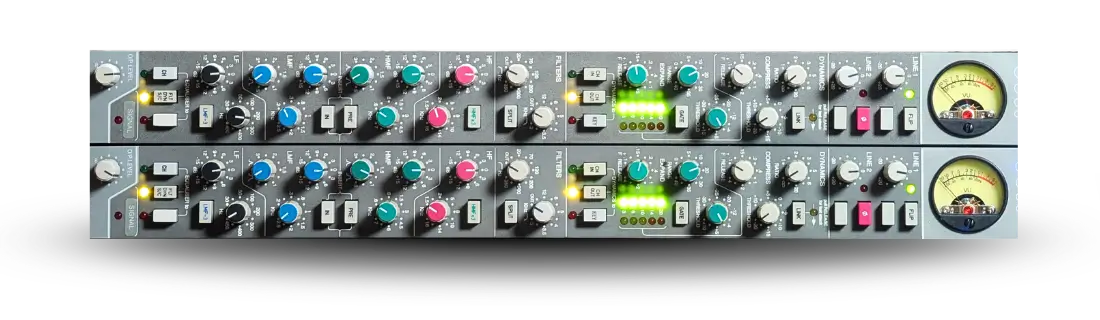

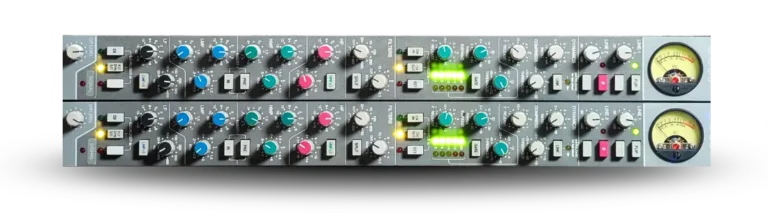

When Solid State Logic rolled the SL 4000 G onto the floor at the 1987 New York AES show, it didn’t just refine the desk that already defined modern records – it added a whole new voice. That voice lives in the “Pink Knob” 292 EQ: SSL’s answer to engineers who wanted the tighter, more polished cousin of the E-Series’ aggressive grit. From Olympic Studios in London to the Record Plant in LA, SL 4000 G channels shaped hits across pop, rock, and hip-hop for a generation. And this is the genuine vintage circuit, a matched stereo pair of the real thing. Not the modern Revival. Not a model.
The 292’s secret is its proportional-Q design: gentle moves open up broad, natural curves, while heavier boosts and cuts tighten right down – the EQ practically reaches for the musical answer before you do. The two shelving bands add slope enhancement and that signature “overshoot” at the corner frequency, so a low-end trim quietly firms up the upper bass instead of leaving a hole, and a top-end lift blooms with air. Underneath sits the full G-Series channel: 18 dB/octave high-pass and 12 dB/octave low-pass filters, plus the famous VCA dynamics section – a compressor/limiter with automatic gain make-up alongside an independent expander/gate – all switchable before or after the EQ, or straight into the sidechain for frequency-conscious dynamics.
Two of these strips, linked in stereo and driven by real robotics inside your session, mean you can strap the console sound across a mix bus, glue a drum stem, or run a stereo synth through the same channel path that launched a thousand records – with full recall and automation the ’80s never dreamed of.
Frequently Asked Questions
What is the SSL SL 4000 Stereo Channels (292 EQ)?
The SSL SL 4000 Stereo Channels is the equalizer path from Solid State Logic’s legendary 4000 G-series console, built around the iconic “Pink Knob” 292 EQ that helped shape countless hit records. It delivers that unmistakable SSL tone – clean, punchy, and musical, for shaping stereo sources, stems, or a full mix. At Access Analog you run real 4000 G console EQ circuitry straight from your DAW through the Analog Matrix, robotically controlled with full recall.
What is the SSL 4000 G EQ best for?
It’s best for musical tone-shaping on vocals, stereo stems, buses, and full mixes, adding polish and that finished, record-ready SSL character. The 292’s variable-Q design keeps small boosts and cuts broad and natural, making it ideal for gentle sweetening, while it tightens up as you push for more focused moves. Engineers reach for the G-series EQ when they want the refined, versatile SSL sound heard across decades of pop, rock, and hip-hop.
Is the SSL 4000 at Access Analog the real console EQ, or an emulation?
It is real SSL 4000 G-series console EQ hardware. Actual analog circuitry, not a model of it. Real Gear. No Emulations. The Analog Matrix plugin robotically controls the physical unit in our racks in real time, so your audio passes through genuine SSL console electronics and returns to your DAW.
What is the “Pink Knob” 292 EQ, and what makes it special?
The ‘292 “Pink Knob” EQ is the equalizer SSL designed for the 4000 G console, famous for its variable-Q (proportional-Q) response: small boosts and cuts stay broad and musical, and the curve tightens automatically as you push harder. Its HF and LF shelves have a steeper slope with a signature “undershoot/overshoot” at the corner frequency that engineers describe as especially musical. That behavior is why the 292 became a go-to for smooth, natural tone-shaping, especially on vocals.
How is the G-series 292 EQ different from the E-series “Black Knob” 242 EQ?
The main difference is Q behavior and character: the G-series ‘292 “Pink Knob” uses a variable-Q design for smooth, broad shaping that tightens as you push, while the E-series ‘242 “Black Knob” uses a constant-Q design that’s more surgical and aggressive. The E-series is prized for grit and attitude; the G-series 292 is the more refined, polished sound many engineers prefer for gentle sweetening and overall tonal balance. Both are unmistakably SSL, the 292 just leans smoother and more musical.
Is this the vintage 4000 G EQ or the newer “Revival 4000”?
This is the vintage 4000 G-series EQ with the true “Pink Knob” 292 circuit – not the newer Revival 4000 channel strip. The distinction matters: the Revival 4000 is built around the E-series “Brown” 02 and “Black” 242 EQ circuits, so it doesn’t include the G-series 292 at all. If you want that specific variable-Q “Pink Knob” tone, the vintage 4000 G Stereo Channels is the real thing.
How do you use the SSL 292 EQ?
Start with small, musical moves. The 292’s variable-Q keeps gentle boosts and cuts broad and natural. A classic SSL move is to boost and cut around the same low-mid frequency (for example, boosting near 250 Hz for body while cutting close by to clear mud), and to use the HMF ×3 and LMF ÷3 switches to push the mid bands toward the edges of the spectrum for creative curves. Use the steep HF and LF shelves to add air or weight, and trust an A/B against the dry signal.
Can I process my DAW stems through it, and can I recall my settings?
At Access Analog you use it as a real-time processor for your DAW audio, your stems or mix stream from your session, pass through the real SSL EQ, and return to the plugin. It’s line-level processing of your existing tracks rather than mic tracking, so it’s ideal for sweetening stereo stems, buses, or a full mix. Every setting is saved with your DAW session for full recall, and the hardware is calibrated daily for consistent results.
How much does it cost to use the SSL 4000 Stereo Channels at Access Analog?
Reservations for the SSL SL 4000 Stereo Channels start at [RESERVE FROM: confirm price on the live product page]. You can book a session on the calendar, or use it on demand from the Analog Matrix plugin when it’s available, on-demand access requires credits or an active subscription. New accounts receive a free hour (about 12 credits) to try real analog gear before committing.
More Information
Select Features of the SSL 4000 Stereo Channels
- Matched stereo pair of genuine vintage SL 4000 G-Series channel strips – the real console hardware, not the modern Revival reissue.
- The legendary “Pink Knob” 292 four-band EQ with proportional (variable) Q – gentler settings yield broader, more musical curves.
- Two shelving bands (LF & HF) with slope enhancement and the signature “overshoot/undershoot” corner behavior prized for its musicality.
- Two wide-ranging parametric mid bands (LMF & HMF) for surgical or broad tone-shaping.
- HMF ×3 and LMF ÷3 range-extension switches to push the mid bands to the outer extremes of the spectrum for unique low- and high-frequency curves.
- 18 dB/octave high-pass and 12 dB/octave low-pass filters.
- Per-channel VCA dynamics: compressor/limiter (ratios from 1:1 up to true peak limiting, with automatic gain make-up) plus an independent expander/gate (0–50 dB range, variable hysteresis).
- EQ and filters switchable pre- or post-dynamics, or routable into the dynamics sidechain.
- Redesigned G-Series audio path with reduced crosstalk, distortion, and noise.
Reviews and Articles
Solid State Logic — Official Channel Strip Guide (292 EQ deep dive)
https://solidstatelogic.com/channel-strip-guide
Abbey Road Institute — SSL E & G Series EQ (the “Pink Knob” 292 explained)
https://abbeyroadinstitute.nl/blog/ssl-e-g-series-eq/
Sweetwater — The History of SSL
https://www.sweetwater.com/insync/the-history-of-ssl/
Sound on Sound — The Console That Changed Mixing Forever
https://www.soundonsound.com/music-business/console-changed-mixing-forever
Equipment Manual
Solid State Logic SL 4000 G Series Operator’s Manual
https://www.manualslib.com/manual/1000157/Solid-State-Logic-Sl-4000-G-Series.html
Direct PDF (full G Series console manual, includes channel EQ, dynamics, and filter sections): https://thehistoryofrecording.com/Manuals/SSL/SSL_SL_4000G_Series_Manual.pdf
